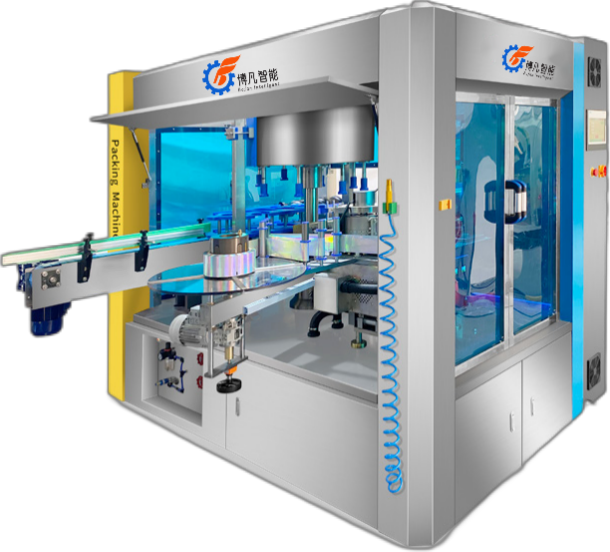

EQUIPMENT SAFETY PROTECTION PART

Bottle shortage alarm: When a bottle shortage occurs, the equipment stops feeding bottles and triggers an alarm; Automatically resume production when there are bottles available, facilitating online production;

Air pressure detection: When the air pressure does not meet the production requirements of the equipment, the equipment will be shut down for protection to prevent the production of defective products;

Missing label alarm: Set an alarm prompt when the label is used up to remind the operator to prepare for label replacement;

Leakage alarm: beneficial for controlling the quality of labeling;

Temperature detection: When the temperature of the hot melt adhesive does not meet the production requirements of the equipment, the equipment will be shut down for protection to prevent the production of defective products.

MECHANICAL PART

Conveyor Belt: Industrial Nylon Chain Plate Conveyor Belt;

Main motor: 2500W AC motor with TRANSTECNO gearbox);

Bottle sorting mechanism: industrial screw type bottle sorting mechanism;

Bottle feeding mechanism: in conjunction with screw type bottle sorting mechanism and star wheel positioning feeding mechanism, to ensure the accuracy and stability of feeding;

Pressure marking agency: professional brush/scraper components;

Labeling mechanism: The rotating turntable drives the bottles to be labeled during the rotation process;

Label delivery mechanism: Yudong high-speed servo label film delivery system (driven by high-speed servo motor);

Pressure marking agency: professional brush/scraper components;

Bottle guide mechanism: profile guide rail with dual coordinate adjustment;

Glue supply system: Yudong Glue supply system adopts frequency conversion+metering control to accurately dispense glue.

ELECTRICAL PART

Bottle holder motor: China Kewei brand, small inertia, high precision, high stability, EtherCAT bus communication;

Variable frequency drive: Adopting Danish brand variable frequency drive, easy to debug, and can operate stably in harsh environments;

Delivery motor: China Kewei brand, characterized by medium inertia, high precision, high stability, and large torque;

Touch screen: Schneider touch screen from France, a world-renowned brand, can operate stably in harsh environments and has good explosion-proof performance;

Central controller: China Kewei brand, high-performance embedded PC motion controller KSC series; Cortex quad core 1.2GHz; 1GB; (including digital module);

Label sensor: Panasonic high-sensitivity label color sensor from Japan;

Other sensors: German Sick photoelectric sensor, proximity sensor;

Encoder: Japanese internal encryption encoder;

Positioning sensor: German positioning sensor;

Pressure sensor: Japanese Panasonic pressure sensor.

PRODUCT PERFORMANCE CHARACTERISTICS

1. This model is suitable for positioning labeling of irregular bottles.

2. Chinese and English touch operating system, truly realizing human-machine dialogue, easy to operate and learn.

3. Adopting high-performance motion controllers and closed-loop control of servo motors from China Science and Technology Corporation to ensure stable and reliable high-speed labeling.

4. Equipped with a 750W high-power, high torque inertia feeding motor, the marking speed can reach 100 meters per minute.

5. Adopt 8 sets of 400w small inertia servo motors, which communicate with the controller EtherCAT to ensure fast response of the servo.

6. By using servo positioning, the rotation trajectory of the bottle can be freely set. If there is a mismatch between the bottle speed and steering during the production process, it can be fine tuned at any time.

7. Due to the use of servo drive, the noise is low. The wear is also smaller than that of gear transmission in traditional mechanical camshafts.

8. Changing bottle types is fast and stable, making it easy to add and adjust whether it is round, square, or small bottles.

9. The accuracy of the starting position is good. Due to the lack of transmission clearance in servo positioning, the starting position accuracy is ± 1mm under the premise of stable bottle size. The accuracy of the starting position will affect the position of the label pattern on the bottle body. And the servo positioning can also freely change the starting position.

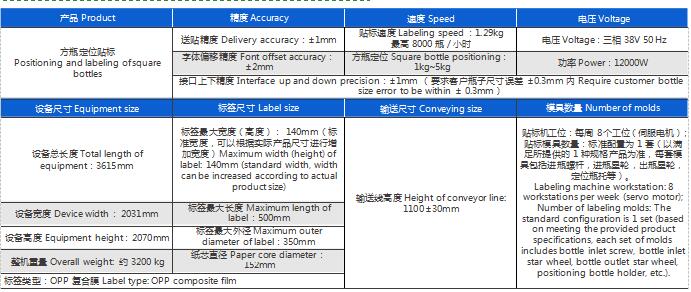

TECHNICAL PARAMETER
